Code: 1210

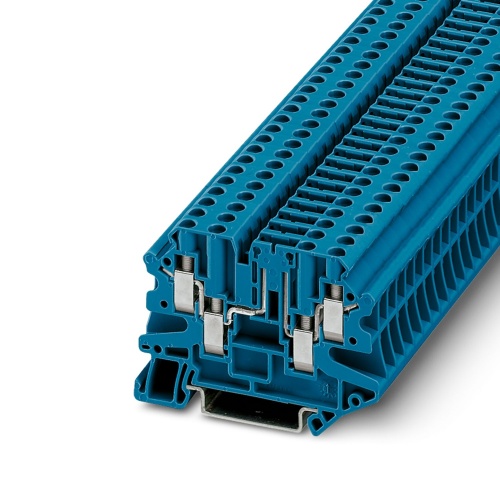

Phoenix Contact 3073076 Disconnect terminal block UT 4-QUATTRO-TG BU
Normally In Stock
UT 4-QUATTRO-TG BU Phoenix Contact 3073076 Phoenix Contact UT 4-QUATTRO-TG BU. Blue Removable Disconnect 4 Conductor Fuse-Terminal Block Base 6.2mm Single through screw connection to use with Plug-ins sold seperately, up to 500V, 20A, 10-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$5.59
Sale Price
$4.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3073076 To ensure safe operation, the maximum load current for a terminal block should not exceed the total current of all connected conductors. The current and voltage are influenced by the type of plug used, with a standard nominal voltage of 500V, a thermal continuous current limit of 20A, and connection methods including screw connections. The rated cross-section is specified as 2.5mm², ranging from 0.14mm² to 6mm², and mounting options include NS35/7.5 and NS35/15, with a standard color of blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Model Type
UT
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3073076 CAD data International.dxfPhoenix 3073076 CAD data International.pdfPhoenix 3073076 CAD data International.stpPhoenix 3073076 CAD Drawing.zipPhoenix 3073076 Manufacturers declaration English.pdfPhoenix 3073076 Manufacturers declaration International.pdfPhoenix 3073076 Safety note English.pdfPhoenix 3073076 Spec Sheet.pdfPhoenix 3073076 Tender Text English.zip
