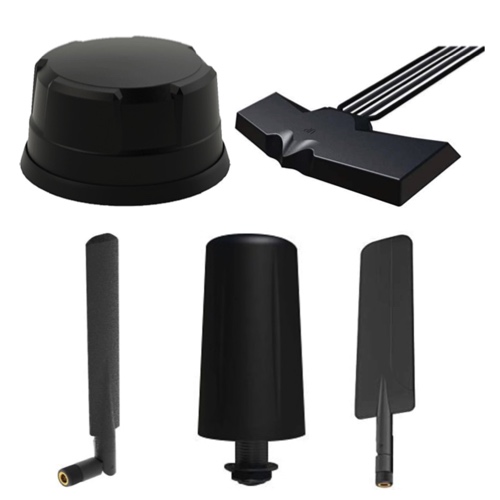

Cellular Antennas

Sierra Wireless AirLink antennas are certified and tested to provide optimal performance with all AirLink gateways and routers. The antennas are designed to connect a wide range of fixed and mobile applications in utilities, public safety, distributed and industrial enterprises.

SharkFin antennas have a compact OEM style housing that contains up to six antenna elements for a variety of antenna solutions. 2x2 MiMo antenna elements function for 2G, 3G, and 4G LTE frequencies and an active antenna for GNSS with 26dB gain LNA and dual band 3x3 MiMo Wi-Fi (2.4/5GHz).

Dome antennas have a low profile design that contains up to ten isolated antenna elements in a single housing. Four ultra wideband elements spanning 617-6000MHz support MiMo/diversity at LTE/5G frequencies. A high performance GNSS antenna with an integrated 26dB gain LNA and up to five dual band 2.4/5GHz Wi-Fi elements that provide reliable MiMo Wi-Fi connectivity. The Dome antennas are ideal for heavy-duty industrial, transit and public safety installations.

Wi-Fi antennas are certified for internal/external Wi-Fi applications and have up to four omni-directional dual band Wi-Fi elements in a single housing. Each element is isolated from the other with a separate feed and covers both the 2.4GHz and 5GHz bands.

BAT antennas are designed for high-speed telematics applications that can be mounted on any non-conductive surface. The isolated dual 3G/4G/5G antenna elements cover 617-6000MHz and GNSS with the option for dual band Wi-Fi.

Panel antenna contains up to four antenna elements covering all current global cellular and LTE bands in frequency range 698-3800MHz and active GNSS antenna.

Paddle antennas are ground plane independent designed with an articulated connector for flexible positioning of 0 to 90 degrees pivot.
