Vertical Hollow Shaft Motors

Electrical Motors are electromechanical devices that convert electrical energy to mechanical energy by producing a rotating force (torque) measured in revolutions per minute (RPM) and horsepower (HP). Medium size motors are designed and built to operate at 60 Hz with three phase voltage at 230 volts, 460 volts and 575 volts. These motors are used to drive compressors, pumps, fans, machine tools, conveyers and other processing and materials handling equipment in industrial sectors.

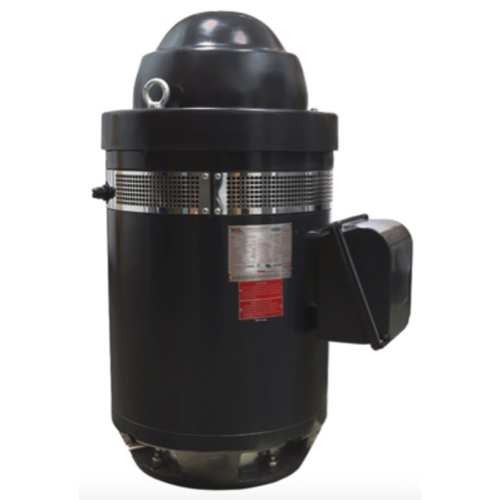

Vertical Hollow Shaft Motors are designed for use on mix flow, turbine and propeller pumps. They feature a P-Base style mount and allow the pump head shaft to extend through the motor shaft and connect to an integrally-mounted drive coupling. Because the vertical hollow shaft motors are designed to take high loading in an axial direction, but little in the radial direction, they are exclusively mounted in a vertical position on their flanged base. The Weather Protected Type 1 (WP1) enclosure is specifically designed to minimize water and dust from entering and mesh screens are added to prevent rodents and debris.

Sort By:
$17875.00
<p>NAE V2-75S4-W36516B Electric Motor 75 HP, 1800 RPM, 365TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling</p>
$17875.00
NAE V2-75S4-W36516A Electric Motor 75 HP, 1800 RPM, 365TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$17875.00
NAE V2-75D4-W36516B Electric Motor 75 HP, 1800 RPM, 365TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$17875.00
NAE V2-75D4-W36516A Electric Motor 75 HP, 1800 RPM, 365TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$13884.92
NAE V2-60S4-W36416B Electric Motor 60 HP, 1800 RPM, 364TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$13884.92
NAE V2-60S4-W36416A Electric Motor 60 HP, 1800 RPM, 364TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$13884.92
NAE V2-60D4-W36416B Electric Motor 60 HP, 1800 RPM, 364TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$13884.92
NAE V2-60D4-W36416A Electric Motor 60 HP, 1800 RPM, 364TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$13135.27
NAE V2-50S4-W32616A Electric Motor 50 HP, 1800 RPM, 326TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$13135.27
NAE V2-50D4-W32616B Electric Motor 50 HP, 1800 RPM, 326TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$13135.27
NAE V2-50D4-W32616A Electric Motor 50 HP, 1800 RPM, 326TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$96108.39
NAE V2-500S4-W500824A-EHT Electric Motor 500 HP, 1800 RPM, 5008P Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 2.188 Coupling
$84086.59
NAE V2-450S4-W500824A-EHT Electric Motor 450 HP, 1800 RPM, 5008P Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.938 Coupling
$13884.92
NAE V2-40S4-W32416B Electric Motor 40 HP, 1800 RPM, 324TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$11637.39
NAE V2-40S4-W32416A Electric Motor 40 HP, 1800 RPM, 324TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$11637.39
NAE V2-40D4-W32416B Electric Motor 40 HP, 1800 RPM, 324TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$11637.39
NAE V2-40D4-W32416A Electric Motor 40 HP, 1800 RPM, 324TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.250 Coupling
$75056.36
NAE V2-400S4-W500824A-EHT Electric Motor 400 HP, 1800 RPM, 5008P Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.938 Coupling
$65101.25
NAE V2-350S4-W500624A-EHT Electric Motor 350 HP, 1800 RPM, 5006P Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.688 Coupling
$9344.33
NAE V2-30D4-W28610B Electric Motor 30 HP, 1800 RPM, 286TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$9344.33
NAE V2-30D4-W28610A Electric Motor 30 HP, 1800 RPM, 286TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.000 Coupling
$59523.89
NAE V2-300S4-W500624A-EHT Electric Motor 300 HP, 1800 RPM, 5006P Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.688 Coupling
$8810.90
NAE V2-25D4-W28410B Electric Motor 25 HP, 1800 RPM, 284TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$8810.90
NAE V2-25D4-W28410A Electric Motor 25 HP, 1800 RPM, 284TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.000 Coupling
$52333.00
NAE V2-250S4-W44516A-EHT Electric Motor 250 HP, 1800 RPM, 445TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.938 Coupling
$7586.70
NAE V2-20D4-W25610A Electric Motor 20 HP, 1800 RPM, 256TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.000 Coupling
$46546.79
NAE V2-200S4-W44516A-EHT Electric Motor 200 HP, 1800 RPM, 445TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.688 Coupling
$6603.20
NAE V2-15D4-W25410A Electric Motor 15 HP, 1800 RPM, 254TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.000 Coupling
$34074.53
NAE V2-150S4-W44416A-EHT Electric Motor 150 HP, 1800 RPM, 444TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.688 Coupling
$26603.40
NAE V2-125S4-W40516A-EHT Electric Motor 125 HP, 1800 RPM, 405TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.500 Coupling
$5798.33
NAE V2-10D4-W21510A Electric Motor 10 HP, 1800 RPM, 215TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.000 Coupling
$25153.88
NAE V2-100S4-W40416A-EHT Electric Motor 100 HP, 1800 RPM, 404TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, Extra High Thrust, includes 1.500 Coupling
$22603.36
NAE V2-100D4-W40416B Electric Motor 100 HP, 1800 RPM, 404TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.188 Coupling
$22603.36
NAE V2-100D4-W40416A Electric Motor 100 HP, 1800 RPM, 404TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Duty, includes 1.500 Coupling
$16941.73
NAE V1-75S4-W36516B Electric Motor 75 HP, 1800 RPM, 365TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
$16941.73
NAE V1-75S4-W36516A Electric Motor 75 HP, 1800 RPM, 365TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.250 Coupling
$16941.73
NAE V1-75D4-W36516B Electric Motor 75 HP, 1800 RPM, 365TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
$16941.73
NAE V1-75D4-W36516A Electric Motor 75 HP, 1800 RPM, 365TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.250 Coupling
$13159.39
NAE V1-60S4-W36416B Electric Motor 60 HP, 1800 RPM, 364TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
$13159.39
NAE V1-60S4-W36416A Electric Motor 60 HP, 1800 RPM, 364TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.250 Coupling
$13159.39
NAE V1-60D4-W36416B Electric Motor 60 HP, 1800 RPM, 364TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
$13159.39
NAE V1-60D4-W36416A Electric Motor 60 HP, 1800 RPM, 364TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.250 Coupling
$12450.20
NAE V1-50S4-W32616B Electric Motor 50 HP, 1800 RPM, 326TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
$12450.20
NAE V1-50S4-W32616A Electric Motor 50 HP, 1800 RPM, 326TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.250 Coupling
$12450.20
NAE V1-50D4-W32616B Electric Motor 50 HP, 1800 RPM, 326TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.188 Coupling
$12450.20
NAE V1-50D4-W32616A Electric Motor 50 HP, 1800 RPM, 326TP Frame, 230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.250 Coupling
$11030.25
NAE V1-40S4-W32416B Electric Motor VHS, TYPE 1, 324TP, 40HP, 4P, 460V, 16.5"" BASE, 1.188 COUPLING, STANDARD WIRE,
$11030.25
NAE V1-40S4-W32416A Electric Motor 40 HP, 1800 RPM, 324TP Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., WP1,Vertical Hollow Shaft Motor, Cast Iron, Prem Eff, Inverter Rated, includes 1.250 Coupling
