Current Transformer Cabinet Connections

Power distribution electrical enclosures are designed to supply power to electrical equipment, to start or stop the flow of power to electrical equipment and to monitor and detect the operation of electrical equipment. Power distribution cabinets protect the internal components from the surrounding environment and protects operators from electric shock. They come in many different shapes, sizes and materials. The power distribution enclosure will have holes made for pulling cables inside for incoming electric current and cables leaving for power distribution. Having the proper connectors are essential for maintaining the NEMA rating of the enclosure.
Current transformer cabinet connections are used in the process of lowering or stepping down a high current to a lower, safer level for measurement and management. The current transformer cabinet is part of an electrical distribution system and house the current transformers, which are used for metering. Terminal box connections split feeder circuit conductors into multiple branch circuit conductors. Terminal boxes are insulated blocks that secure two or more wires together.

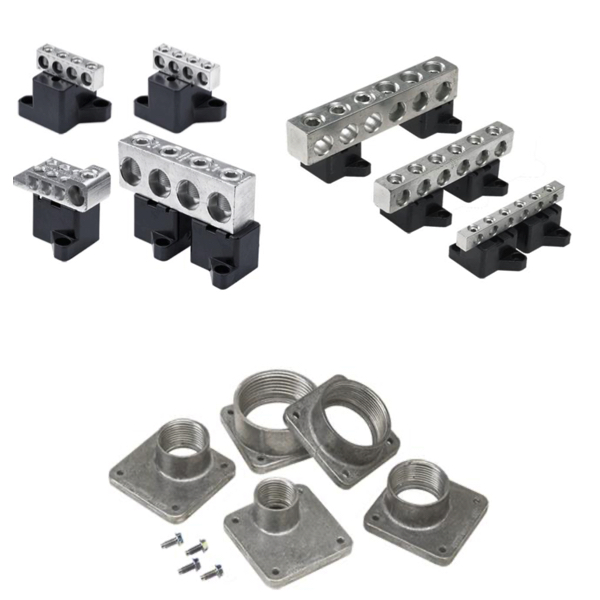

Hoffman Terminal Box Lug Assemblies tap feeder to branch circuits in terminal boxes. Each 400 amp main lug has copper/aluminum connectors secured to insulators.
Hoffman Splitter Box Block Assemblies tap feeder branch circuits in splitter boxes and troughs. Each 600 V block includes a main lug and branch lugs, together with copper/aluminum connectors secured to insulators.
Hoffman Interchangeable Bolt-On-Hubs are used on terminal boxes for easy and secure entry through the top of the enclosure for conduits sized 1 to 2.5 inches.
Products
Transformers take one type of voltage and convert it to a different kind of voltage. The amount of energy being used stays the same. When voltage is increased or decreased by a transformer, the amount of energy is not increasing or decreasing, it is simply changing the way the energy is being used. Ohms law (V=IR) shows that the current will change proportionally to the voltage. Therefore when voltage increases, amperage decreases. When voltage decreases, amperage increases. A transformer can take any type of AC voltage and change that voltage either up or down. For example, power companies use transformers to change the voltage from a very high, dangerous voltage down to a level that can be safely used in homes. In industrial applications, transformers step down voltage from 480VAC to 120VAC to use in control circuits.
