Relays are switches that open and close circuits. They control one electrical circuit by opening or closing contacts in another circuit. When a relay contact is normally open (NO), there is an open contact when the relay is not energized. When a relay contact is normally closed (NC), there is a closed contact when the relay is not energized. Applying electrical current to the contacts will change their state. Many relays use an electromagnet to mechanically operate a switch, but other operating principles such as solid-state relays are also used. Relays are used where it is necessary to control a circuit by a low-power signal or where several circuits must be controlled by one signal. Depending on the structural features and operating principle, relays are of different types such as monitoring, regulating, auxiliary and protective. Classification of the types of relays depend on the function for which they are used.

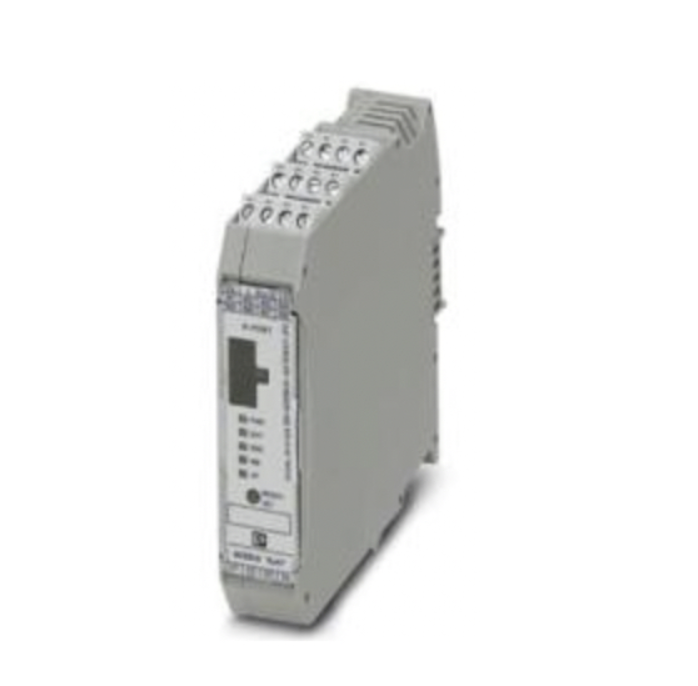

A gateway is a hardware device that joins two networks so that devices on one network can communicate with devices on another network. It serves as an entry and exit point for a network as all data traffic passes through it before being routed. Ethernet gateways are devices that allow protocol conversion to an EtherNet/IP network. In automated industrial or SCADA (Supervisory Control and Data Acquisition) systems, Ethernet gateways often facilitate connecting serial devices to an Ethernet network, allowing multiple connections and a conversion between fieldbus protocols such as Modbus or PROFIBUS (Process Filed Bus) to EtherNet/IP or PROFINET (Process Field Net).
What is a relay? A relay is an electrically operated switch. Most relays use an electromagnetic to operate the switch. An electromagnet is a device that creates a magnetic field by passing an electrical current through a coil of wire. The magnetic field is then turned off when the current is removed.
Why use relays? Relays are commonly used when there is a need to control a switch with high voltage or circuits with large amounts of current passing through them. Operating these types of switches manually can be dangerous, inefficient and impractical. By using relays, operational safety is increased while also providing the ability to use smaller, safer and less expensive electrical equipment to control devices. Using relays allow for control of several devices on a single switch, as opposed to using several switches for each device. Relays can be combined with timers and logic circuits to assist in electrical automation.
How do relays work? A relay consists of two separate circuits that work together to open or close a switch (or contacts). The first circuit drives the coil (or electromagnet). The electricity passes through the coil, creating a magnetic field. The second circuit contains a set contacts and a separate power source. This circuit is what provides power to the electrical load. When electricity passes through the coil, it creates a magnetic field. This magnetic field pulls the contact from the other circuit closed (or against the stationary contact) which will allow current to pass through the contacts, therefore allowing the load to become energized. When the coil is de-energized, the magnetic field is gone which allows the contact to be pushed back into its original state, de-energizing the load side of the circuit.
