iNet Radio

GE’s MDS is an end-to-end industrial wireless communication provider which carries serial and IP/Ethernet traffic, as well as analog and digital I/O signals connected to field sensors and devices, accommodating an extensive variety of industrial protocols. GE’s MDS wireless radios have been rated and tested to harsh specifications and operate over licensed and unlicensed narrowband communication in a variety of frequencies.

Frequency-hopping spread spectrum (FHSS) is wireless technology that transmits radio signals by rapidly changing the carrier frequency among many distinct frequencies in a large spectral band. The frequency band is divided into sub-bands and signals “hop” their carrier frequencies among the sub-bands in a predetermined order. The “hopping” frequencies are difficult to intercept and interference at a specific frequency will only last a short time.

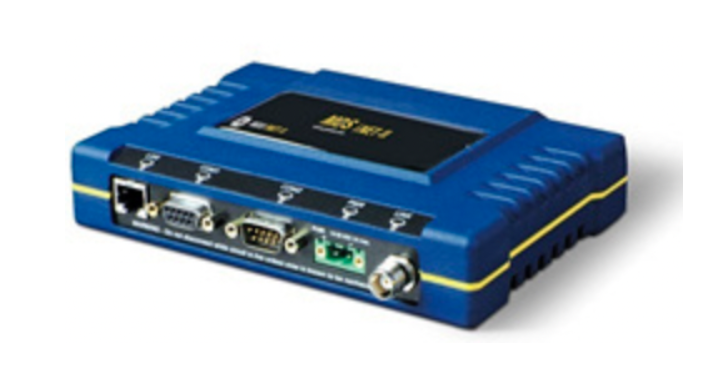

MDS iNET Series radios allow users to interface with Ethernet and serial controllers. They combine the higher speed of Digital Transmission Systems (DTS) with the robustness of FHSS technology. Comprised of the iNET-II and iNET 900, the iNET Series offers the best balance of range and speed to enable a wide variety of applications requiring higher data capabilities than typical communication systems can provide. MDS iNet Series radios handle multiple industry protocols including Modbus, Modbus TCP and DF1. They have multiple layers of security including, RADIUS authentication, VLAN traffic segregation, proprietary hopping patterns and AES 128-bit encryption. MDS iNet Series radios are CSA Class I, Division 2 approved for hazardous locations and operate in temperatures from -30 degrees Celsius to 60 degrees Celsius.

Sort By:
$2101.00
MDS iNET-II-AP-DG900 Radio iNETII 900 MHz Access Point and Remote Ethernet Radio, 10.5-30v with data rate to 1000 Kbps at max range of 20 miles(15 miles Typical) and 512 Kbps at max range of 30 miles(20 miles typical), sensitivity of -97 at 512k and -92 at 1000k. Temperature range of -22 to 140 degrees fahrenheit. Power consumption of 510 MA at 13.8V. The Inet 2 radio has a din mountable rugged case with 1 ethernet and 2 serial data ports. (AES 128 cipher encription) Inet 2 radios have the fastest data rate in it's class with up to over 1 Mbps data rate and a long range of up to 20 miles. This Inet 2 radios is ideal where very fast data speeds are required like in projects where video is needed.
$2090.00
MDS iNET-II-AP-DG900 Radio iNETII 900 MHz Access Point and Remote Ethernet Radio, 10.5-30v with data rate to 1000 Kbps at max range of 20 miles(15 miles Typical) and 512 Kbps at max range of 30 miles(20 miles typical), sensitivity of -97 at 512k and -92 at 1000k. Temperature range of -22 to 140 degrees fahrenheit. Power consumption of 510 MA at 13.8V. The Inet 2 radio has a din mountable rugged case with 1 ethernet and 2 serial data ports. (AES 128 cipher encription) Inet 2 radios have the fastest data rate in it's class with up to over 1 Mbps data rate and a long range of up to 20 miles. This Inet 2 radios is ideal where very fast data speeds are required like in projects where video is needed.
$1963.50
MDS iNET-AP-DG900 Radio iNET 900 MHz Access Point and Remote Ethernet Radio, 10.5-30v with data rate to 512 Kbps at max range of 15 miles (Typical 8 miles) and 256 Kbps at max range of 60 miles (Typical 15 miles), sensitivity of -99 at 256k and -92 at 512k. Temperature range of -22 to 140 degrees fahrenheit. Power consumption of 510 MA at 13.8V. The Inet 900 radio is in a durable case with 1 ethernet and 2 serial data ports along with a TNC antenna port and is Din Rail Mountable. Longest range industrial radio in its class. (RC4-128 data encryption) very fast data rates of up to 512 Kbps at very long range of up to 15 miles. Often used in control cabinet for SCADA projects in remote locations. The Inet 900 radio is one of the most popular industrial data radios in oil & gas, water & wastewater, power and many other industrial applications.
$1963.50
MDS iNET-AP-DG900 Radio iNET 900 MHz Access Point and Remote Ethernet Radio, 10.5-30v with data rate to 512 Kbps at max range of 15 miles (Typical 8 miles) and 256 Kbps at max range of 60 miles (Typical 15 miles), sensitivity of -99 at 256k and -92 at 512k. Temperature range of -22 to 140 degrees fahrenheit. Power consumption of 510 MA at 13.8V. The Inet 900 radio is in a durable case with 1 ethernet and 2 serial data ports along with a TNC antenna port and is Din Rail Mountable. Longest range industrial radio in its class. (RC4-128 data encryption) very fast data rates of up to 512 Kbps at very long range of up to 15 miles. Often used in control cabinet for SCADA projects in remote locations. The Inet 900 radio is one of the most popular industrial data radios in oil & gas, water & wastewater, power and many other industrial applications.
